Compound-Glass-Fiber-Compatible Type (HS, HT)

● As pure silica glass with no impurities is used as a core for the compound-glass-fiber-compatible fiber, attenuation is less than half that with the compound-glass fiber, enabling data transmission with improved system margin and higher reliability.

● Use of pure silica glass instead of inherently weak compound glass and reinforcement with hard polymer cladding result in mechanically strong, reliable fiber cords and cables.

● Highly accurate connector attachment is possible with no cumbersome and skill-requiring polishing process (only cleaving with the special cutter is required).

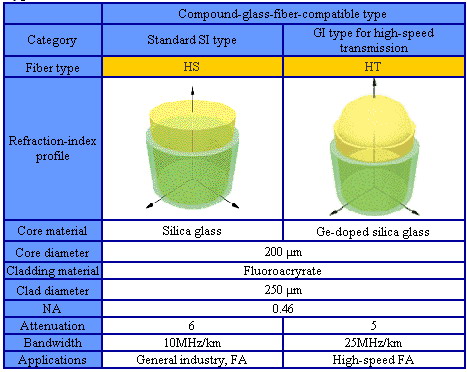

 Types of H-PCF fibers

　

 H-PCF cords

　

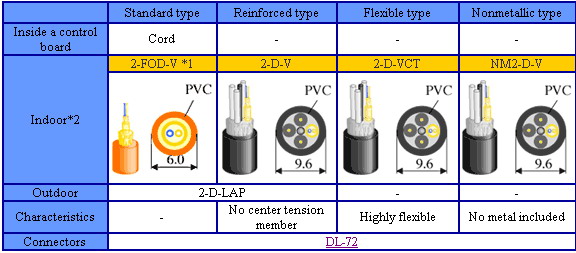

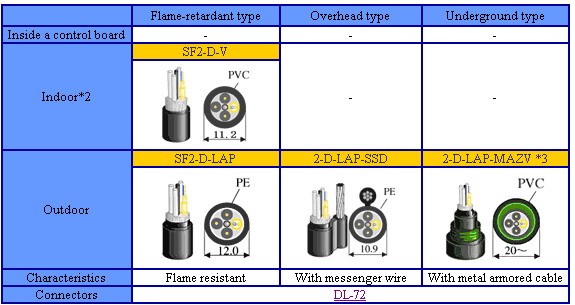

 H-PCF cables (In the table below, the duplex-type cables are shown as examples.)

　

*1: In cases where cable length needs to be 200 m or more, or if a great tension will be applied to the cable during laying, such as when pulling the cable with a winch, use a multi-type optical fiber cable with center tension member.
*2: A LAP-sheathed cable must be used even for indoor use if a cable is anticipated to be soaked or immersed in water.
*3: A 2-C-LAP-MAZE cable must be used if chemical resistance for the cable is highly required.

　

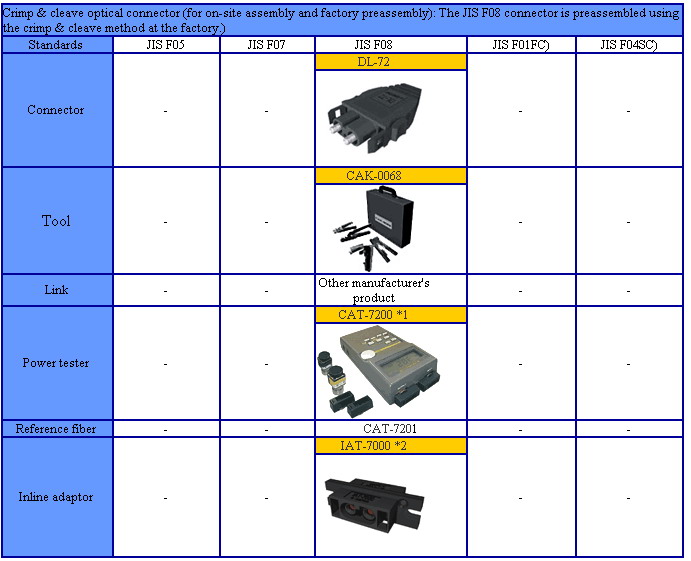

 H-PCF connectors and tools

*1: Two power tester sets are required for measurement of cables after laying.
*2: With an inline adaptor inserted, transmission distance is shortened.
