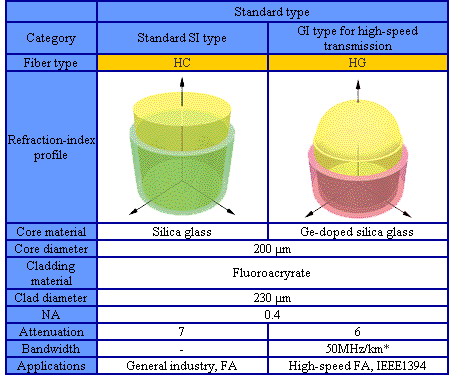

Types of H-PCF fibers

*Depending on the light sources and transmission distance, several-hundred-Mega-bit to Giga-bit data transmission is possible.

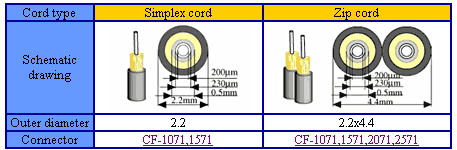

 H-PCF cords

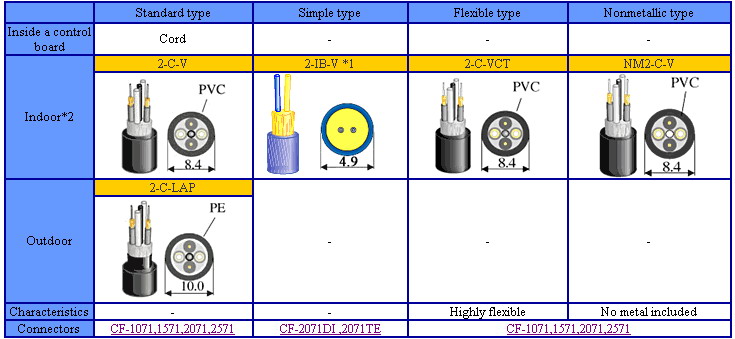

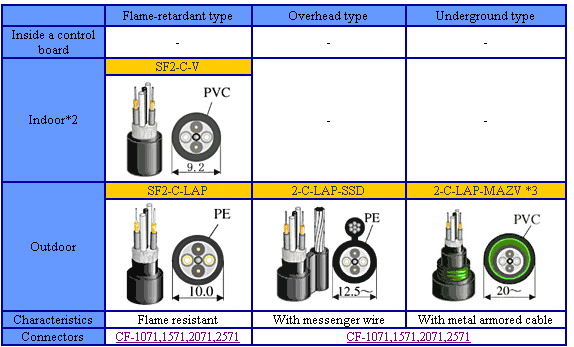

 H-PCF cables (In the table below, the duplex-type cables are shown as examples.)

*1 In cases where cable length needs to be 200 m or more, or if a great tension will be applied to the cable during laying, such as when pulling the cable with a winch, use a multi-type optical fiber cable with center tension member.
*2 A LAP-sheathed cable must be used even for indoor use if a cable is anticipated to be soaked or immersed in water.
*3 A 2-C-LAP-MAZE cable must be used if chemical resistance for the cable is highly required.

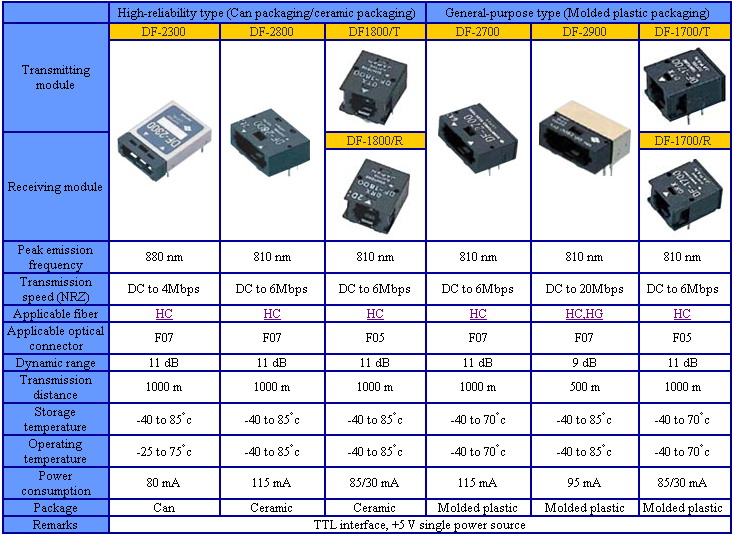

 H-PCF modules

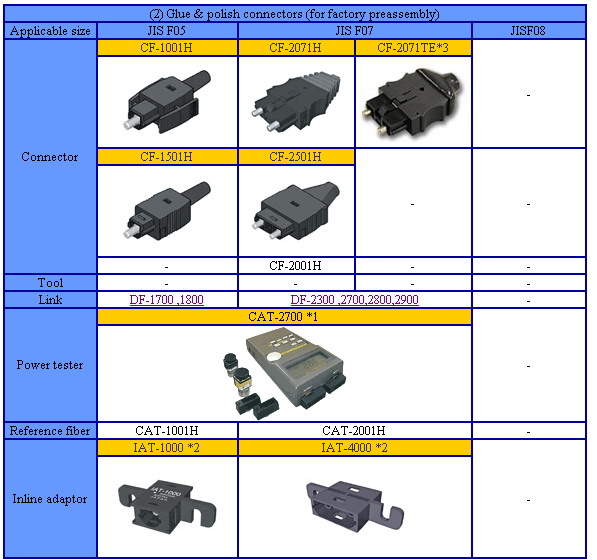

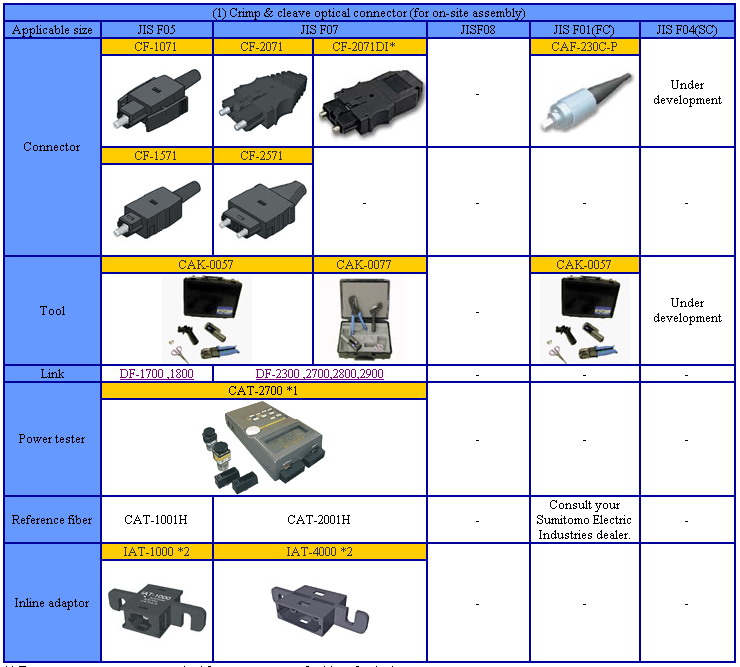

 H-PCF connectors and tools

*1 Two power tester sets are required for measurement of cables after laying.
*2 With an inline adaptor inserted, transmission distance is shortened.
